Set up your phone for web-based email - Nokia 109

Read help info

You can send and retrieve email messages from a web-based email account, such as Hotmail, Yahoo! Mail and Gmail. Follow these instructions to set up your phone for web-based email.
Before you can set up your phone for web-based email, you need an account with the required email provider. If you don't have an account, you can set one up on the web page of the email provider.

Please note that the steps below are based on a web-based email account. If you have a POP3 email account, you need to use the settings for POP3 email. Click here for information on how to set up your phone for POP3 email.

Step 1 of 29

Find "Personal configuration settings"

Press the Navigation key.

Step 2 of 29

Find "Personal configuration settings"

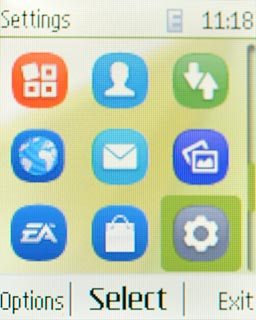

Scroll to Settings and press the Navigation key.

Step 3 of 29

Find "Personal configuration settings"

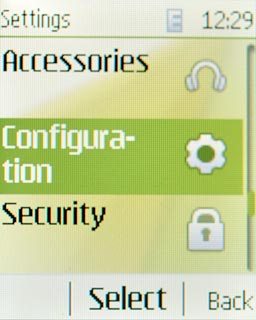

Scroll to Configuration and press the Navigation key.

Step 4 of 29

Find "Personal configuration settings"

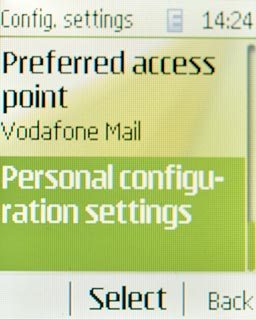

Scroll to Personal configuration settings and press the Navigation key.

Step 5 of 29

Create new data connection

If no data connections have been created:
Press the Navigation key.

Step 6 of 29

Create new data connection

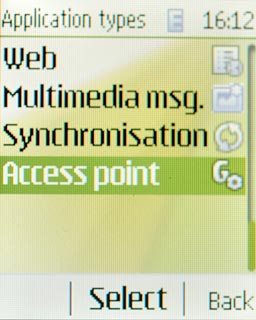

Scroll to Access point and press the Navigation key.

Step 7 of 29

Create new data connection

If data connections have been created already:
Press Options.

Step 8 of 29

Create new data connection

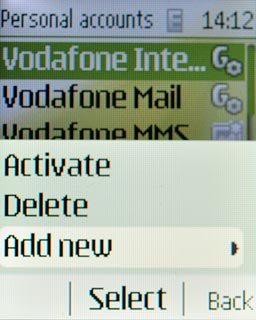

Scroll to Add new and press the Navigation key.

Step 9 of 29

Create new data connection

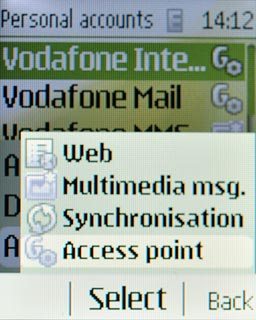

Scroll to Access point and press the Navigation key.

Step 10 of 29

Enter data connection name

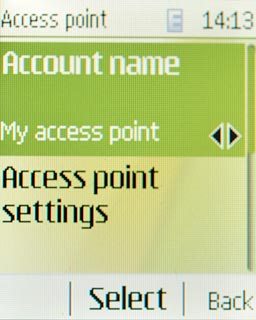

Scroll to Account name and press the Navigation key.

Step 11 of 29

Enter data connection name

Key in Vodafone Mail and press the Navigation key.

Step 12 of 29

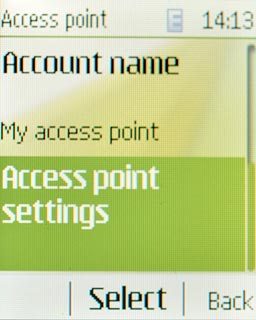

Edit bearer settings

Scroll to Access point settings and press the Navigation key.

Step 13 of 29

Edit bearer settings

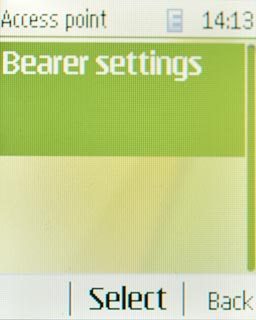

Scroll to Bearer settings and press the Navigation key.

Step 14 of 29

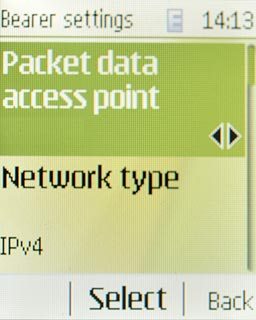

Enter APN

Scroll to Packet data access point and press the Navigation key.

Step 15 of 29

Enter APN

Key in live.vodafone.com and press the Navigation key.

Step 16 of 29

Select authentication type

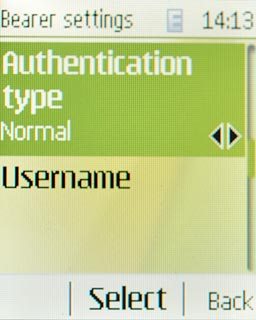

Scroll to Authentication type and press the Navigation key.

Step 17 of 29

Select authentication type

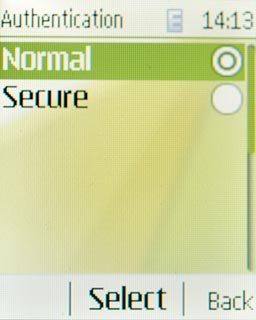

Scroll to Normal and press the Navigation key.

Step 18 of 29

Activate data connection

Press Back three times to save the settings.

Step 19 of 29

Activate data connection

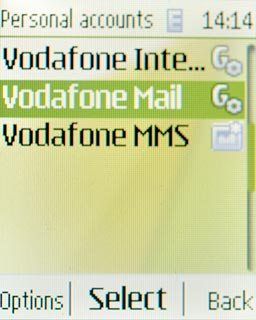

Scroll to Vodafone Mail and press Options.

Step 20 of 29

Activate data connection

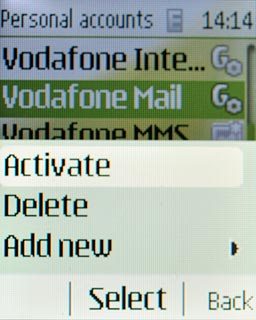

Scroll to Activate and press the Navigation key.

Step 21 of 29

Activate data connection

Press Disconnect to return to standby mode.

Step 22 of 29

Find "Mail"

Press the Navigation key.

The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Step 23 of 29

Find "Mail"

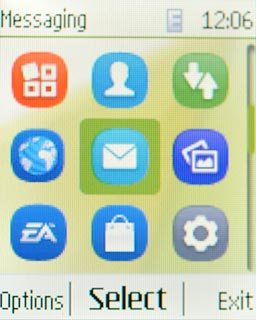

Scroll to Messaging and press the Navigation key.

The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Step 24 of 29

Find "Mail"

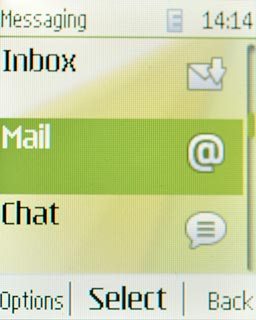

Scroll to Mail and press the Navigation key.

The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Step 25 of 29

Create new email account

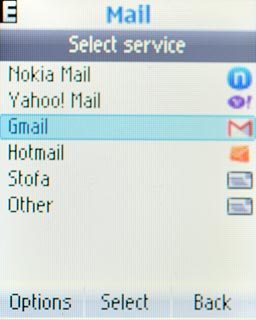

Highlight the required provider and press the Navigation key.

If email accounts have been created already, scroll to Add account. Press the Navigation key.
Nokia 109
Step 26 of 29

Enter email address

Key in your email address (such as name@provider.com).

Step 27 of 29

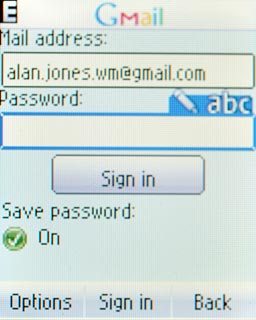

Enter password

Scroll to Password and key in the password for your mailbox at your email provider.

Step 28 of 29

Retrieve email messages

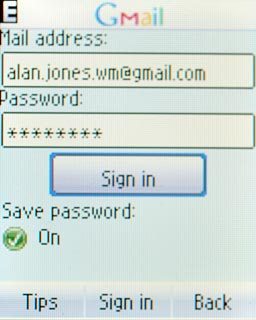

Scroll to Sign in and press the Navigation key.
Wait while your phone retrieves new email messages.

Step 29 of 29

Exit

Press and hold Disconnect to return to standby mode.

Find "Personal configuration settings"

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal configuration settings and press the Navigation key.

Create new data connection

If no data connections have been created:
Press the Navigation key.
Scroll to Access point and press the Navigation key.
If data connections have been created already:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Access point and press the Navigation key.

Enter data connection name

Scroll to Account name and press the Navigation key.
Key in Vodafone Mail and press the Navigation key.

Edit bearer settings

Scroll to Access point settings and press the Navigation key.
Scroll to Bearer settings and press the Navigation key.

Enter APN

Scroll to Packet data access point and press the Navigation key.
Key in live.vodafone.com and press the Navigation key.

Select authentication type

Scroll to Authentication type and press the Navigation key.
Scroll to Normal and press the Navigation key.

Activate data connection

Press Back three times to save the settings.
Scroll to Vodafone Mail and press Options.
Scroll to Activate and press the Navigation key.
Press Disconnect to return to standby mode.

Find "Mail"

Press the Navigation key.
The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Scroll to Messaging and press the Navigation key.
The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Scroll to Mail and press the Navigation key.
The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.

Create new email account

Highlight the required provider and press the Navigation key.
If email accounts have been created already, scroll to Add account. Press the Navigation key.

Enter email address

Key in your email address (such as name@provider.com).
Nokia 109

Enter password

Scroll to Password and key in the password for your mailbox at your email provider.

Retrieve email messages

Scroll to Sign in and press the Navigation key.
Wait while your phone retrieves new email messages.

Exit

Press and hold Disconnect to return to standby mode.
