Insert memory card - Nokia 109

Read help info

You can save files, such as pictures and video clips, in the phone memory or on the memory card. Follow these instructions to insert the memory card.

Step 1 of 7

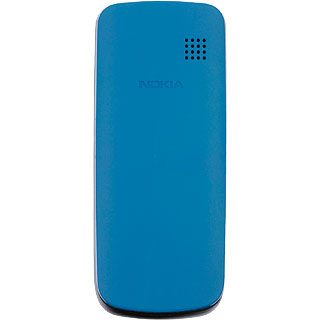

Remove the back cover

Turn the back of your phone towards you.
Slide the back cover upwards and remove it.

Step 2 of 7

Remove the battery

Take hold of the top of the battery and remove it.

Step 3 of 7

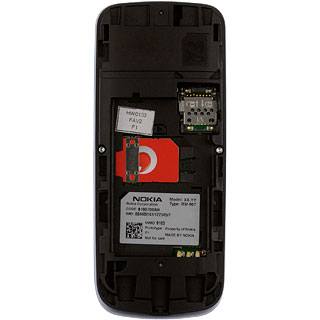

Insert memory card

Slide the memory card holder upwards and lift it up.

Step 4 of 7

Insert memory card

Turn the memory card as illustrated on the memory card holder.
Slide the memory card into the memory card holder.

Step 5 of 7

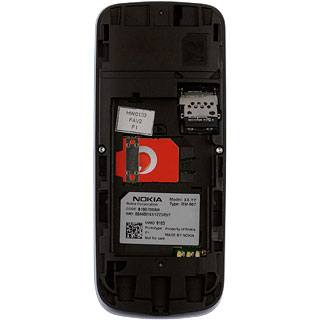

Insert memory card

Close the memory card holder and slide it downwards until it's secured.

Nokia 109
Step 6 of 7

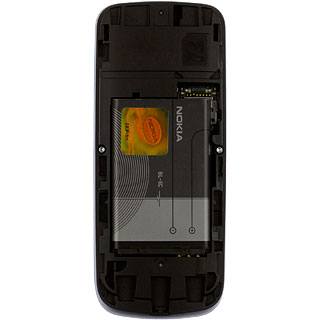

Insert battery

Place the battery in your phone (bottom first), matching the battery contacts with the phone contacts, and press the battery into place.

Step 7 of 7

Replace the back cover

Place the back cover on your phone and slide the back cover downwards until it clicks into place.

1. Remove the back cover

Turn the back of your phone towards you.
Slide the back cover upwards and remove it.

2. Remove the battery

Take hold of the top of the battery and remove it.

3. Insert memory card

Slide the memory card holder upwards and lift it up.
Turn the memory card as illustrated on the memory card holder.
Slide the memory card into the memory card holder.
Close the memory card holder and slide it downwards until it's secured.

4. Insert battery

Place the battery in your phone (bottom first), matching the battery contacts with the phone contacts, and press the battery into place.
Nokia 109

5. Replace the back cover

Place the back cover on your phone and slide the back cover downwards until it clicks into place.
