Set up your phone for POP3 email - Motorola Defy Mini

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to set up your phone for web-based email.

Step 1 of 57

Find "Access Point Names"

Press the menu icon.

Step 2 of 57

Find "Access Point Names"

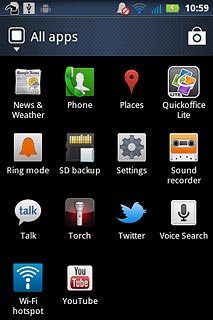

Press Settings.

Step 3 of 57

Find "Access Point Names"

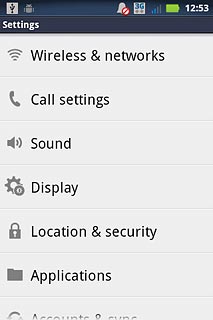

Press Wireless & networks.

Step 4 of 57

Find "Access Point Names"

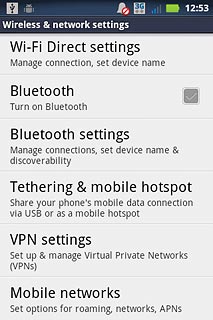

Press Mobile networks.

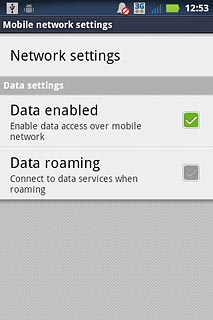

Step 5 of 57

Find "Access Point Names"

Press Network settings.

Step 6 of 57

Find "Access Point Names"

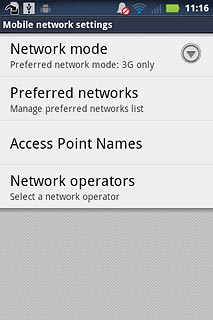

Press Access Point Names.

Step 7 of 57

Create new data connection

Press the Menu key.

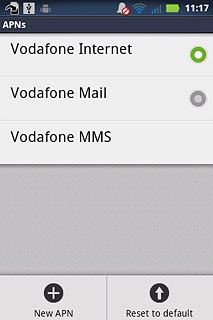

Step 8 of 57

Create new data connection

Press New APN.

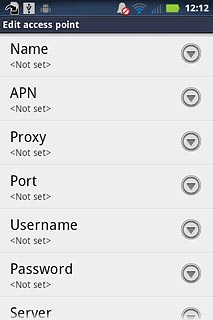

Step 9 of 57

Enter data connection name

Press Name.

Step 10 of 57

Enter data connection name

Key in Vodafone Mail and press OK.

Step 11 of 57

Enter APN

Press APN.

An APN is used to create a data connection.
Step 12 of 57

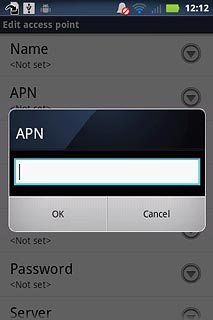

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to create a data connection.

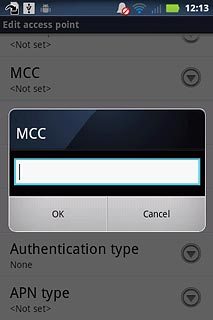

Step 13 of 57

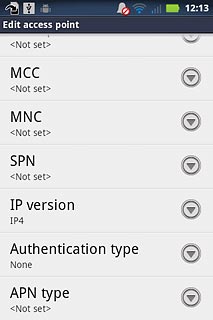

Enter country code

Press MCC.

Step 14 of 57

Enter country code

Key in 272 and press OK.

Step 15 of 57

Enter network code

Press MNC.

Step 16 of 57

Enter network code

Key in 01 and press OK.

Step 17 of 57

Select authentication type

Press Authentication type.

Step 18 of 57

Select authentication type

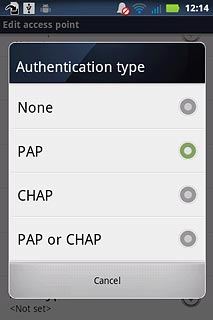

Press PAP.

Step 19 of 57

Select APN type

Press APN type.

Step 20 of 57

Select APN type

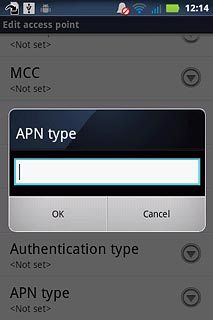

Key in default and press OK.

Step 21 of 57

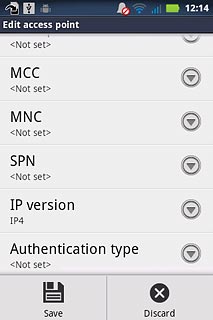

Save and activate data connection

Press the Menu key.

Step 22 of 57

Save and activate data connection

Press Save.

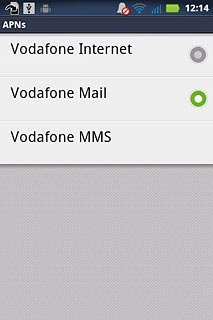

Step 23 of 57

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

Step 24 of 57

Save and activate data connection

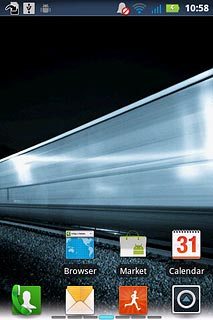

Press the Home key to return to standby mode.

Step 25 of 57

Find "Email"

Press the menu icon.

Step 26 of 57

Find "Email"

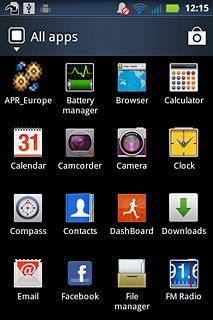

Press Email.

Step 27 of 57

Create new email account

If email accounts have been created already:

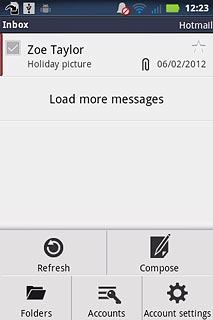

Press the Menu key.

Step 28 of 57

Create new email account

Press Accounts.

Step 29 of 57

Create new email account

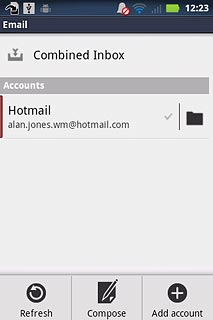

Press the Menu key.

Step 30 of 57

Create new email account

Press Add account.

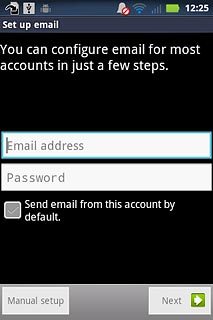

Step 31 of 57

Enter email address

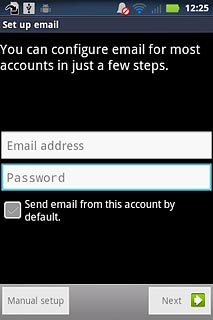

Press Email address and key in your email address.

Step 32 of 57

Enter password

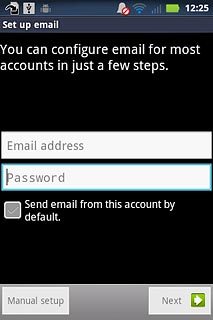

Press Password and key in the password for your email account.

Step 33 of 57

Enter password

Press Next.

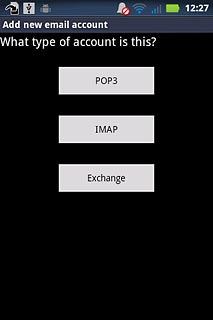

Step 34 of 57

Select server type

Press POP3.

Step 35 of 57

Enter username

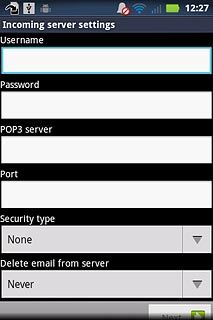

Press the field below Username and key in the username for your email account.

Step 36 of 57

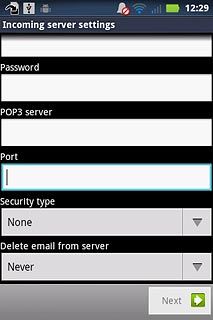

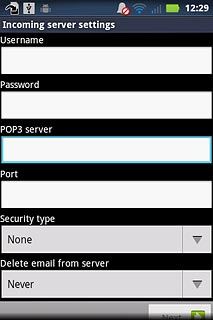

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

Step 37 of 57

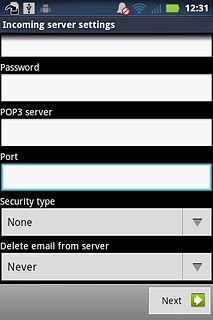

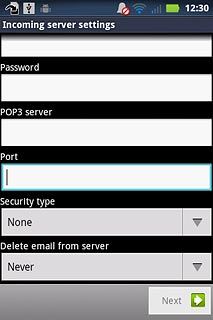

Enter incoming port

Press the field below Port and key in 110

Step 38 of 57

Turn off encryption of incoming email messages

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 39 of 57

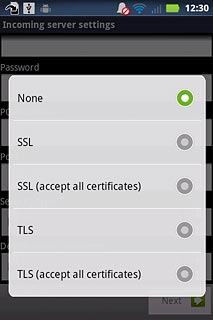

Turn off encryption of incoming email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 40 of 57

Turn deletion of email messages on server on or off

Press the drop down list below Delete email from server.

Step 41 of 57

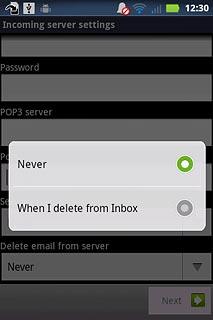

Turn deletion of email messages on server on or off

Press Never or When I delete from Inbox.

Step 42 of 57

Turn deletion of email messages on server on or off

Press Next.

Step 43 of 57

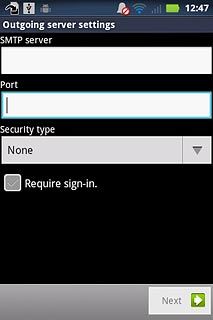

Enter outgoing server

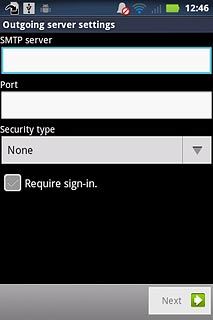

Press the field below SMTP server and key in mail.vodafone.ie

Step 44 of 57

Enter outgoing port

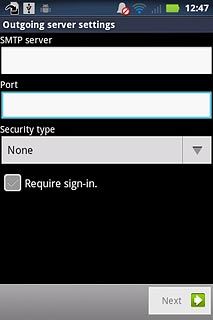

Press the field below Port and key in 25

Step 45 of 57

Turn off encryption of outgoing email messages

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 46 of 57

Turn off encryption of outgoing email messages

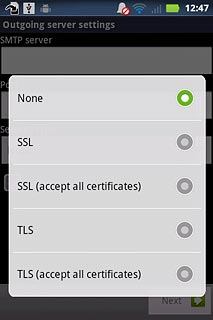

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 47 of 57

Turn off SMTP authentication

Press Require sign-in to turn off SMTP authentication.
When the box next to the menu item is empty, SMTP authentication is turned off.

Step 48 of 57

Enter username for outgoing server

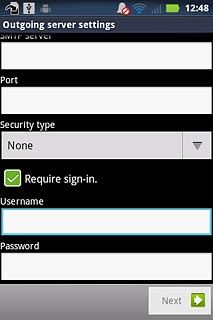

Press the field below User name and key in your username for your email provider's outgoing server.

Step 49 of 57

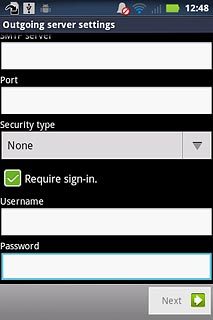

Enter password for outgoing server

Press the field below Password and key in your password for your email provider's outgoing server.

Step 50 of 57

Enter password for outgoing server

Press Next.

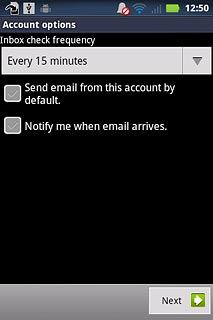

Step 51 of 57

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.

Step 52 of 57

Select setting for retrieving new email messages

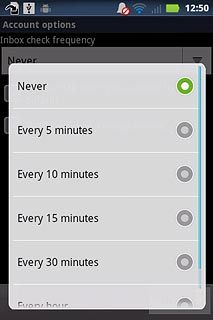

Press Never or the required period.

Step 53 of 57

Select setting for retrieving new email messages

Press Next.

Step 54 of 57

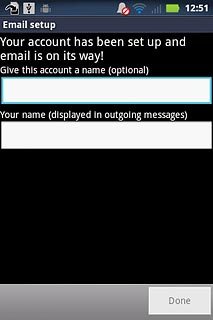

Enter account name

Press the field below Give this account a name (optional) and key in the required name.

Step 55 of 57

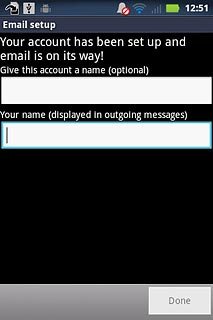

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 56 of 57

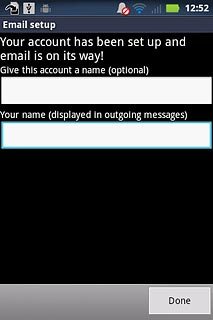

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Step 57 of 57

Exit

Press the Home key to return to standby mode.

1. Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless & networks.
Press Mobile networks.
Press Network settings.
Press Access Point Names.

2. Create new data connection

Press the Menu key.
Press New APN.

3. Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

4. Enter APN

Press APN.
An APN is used to create a data connection.
Key in live.vodafone.com and press OK.
An APN is used to create a data connection.

5. Enter country code

Press MCC.
Key in 272 and press OK.

6. Enter network code

Press MNC.
Key in 01 and press OK.

7. Select authentication type

Press Authentication type.
Press PAP.

8. Select APN type

Press APN type.
Key in default and press OK.

9. Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

10. Find "Email"

Press the menu icon.
Press Email.

11. Create new email account

If email accounts have been created already:
Press the Menu key.
Press Accounts.
Press the Menu key.
Press Add account.

12. Enter email address

Press Email address and key in your email address.

13. Enter password

Press Password and key in the password for your email account.
Press Next.

14. Select server type

Press POP3.

15. Enter username

Press the field below Username and key in the username for your email account.

16. Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

17. Enter incoming port

Press the field below Port and key in 110

18. Turn off encryption of incoming email messages

Press the drop down list below Security type.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press None.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

19. Turn deletion of email messages on server on or off

Press the drop down list below Delete email from server.
Press Never or When I delete from Inbox.
Press Next.

20. Enter outgoing server

Press the field below SMTP server and key in mail.vodafone.ie

21. Enter outgoing port

Press the field below Port and key in 25

22. Turn off encryption of outgoing email messages

Press the drop down list below Security type.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press None.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

23. Turn off SMTP authentication

Press Require sign-in to turn off SMTP authentication.
When the box next to the menu item is empty, SMTP authentication is turned off.

24. Enter username for outgoing server

Press the field below User name and key in your username for your email provider's outgoing server.

25. Enter password for outgoing server

Press the field below Password and key in your password for your email provider's outgoing server.
Press Next.

26. Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.
Press Never or the required period.
Press Next.

27. Enter account name

Press the field below Give this account a name (optional) and key in the required name.

28. Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

29. Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

30. Exit

Press the Home key to return to standby mode.
