Insert SIM and battery - Motorola Defy Mini

Read help info

Before you can start using your phone, you need to insert your SIM and battery. Follow these instructions to insert your SIM and battery.

Step 1 of 6

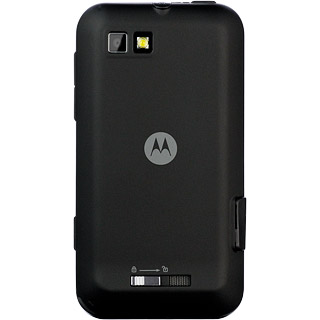

Remove the back cover

Turn the back of your phone towards you and slide the back cover catch right.

Step 2 of 6

Remove the back cover

Take hold of the bottom of the back cover and remove it.

Step 3 of 6

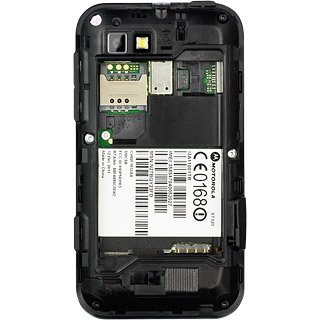

Insert your SIM

Place your SIM as illustrated in the SIM holder and slide it in.

Motorola Defy Mini
Step 4 of 6

Insert battery

Place the battery in your phone, bottom first, matching the battery contacts with the phone contacts, and press it into place.

Step 5 of 6

Replace the back cover

Place the back cover on your phone, bottom first, and press it into place.

Step 6 of 6

Replace the back cover

Slide the back cover catch left.

1. Remove the back cover

Turn the back of your phone towards you and slide the back cover catch right.
Take hold of the bottom of the back cover and remove it.

2. Insert your SIM

Place your SIM as illustrated in the SIM holder and slide it in.

3. Insert battery

Place the battery in your phone, bottom first, matching the battery contacts with the phone contacts, and press it into place.
Motorola Defy Mini

4. Replace the back cover

Place the back cover on your phone, bottom first, and press it into place.
Slide the back cover catch left.
