Huawei Y5 II

Huawei Y5 II

Android 5.1

I can't use the internet connection on my Huawei Y5 II Android 5.1

Cause 1 of 4: Your phone hasn't been correctly set up for internet

Several functions on your phone require an internet connection, e.g. the internet browser, sending of email messages and installing apps.

Solution: Set up your phone for internet.

Step 1 of 26

Find "Access Point Names"

Press Settings.

Step 2 of 26

Find "Access Point Names"

Press All.

Step 3 of 26

Find "Access Point Names"

Press More.

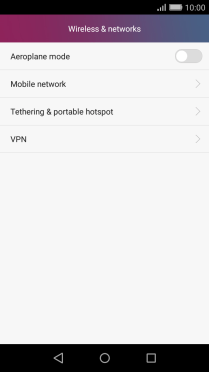

Step 4 of 26

Find "Access Point Names"

Press Mobile network.

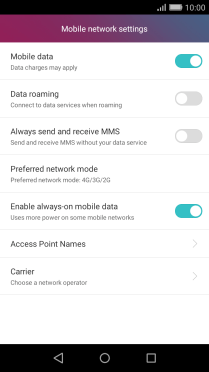

Step 5 of 26

Find "Access Point Names"

Press Access Point Names.

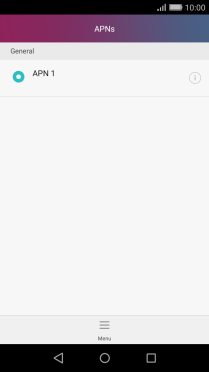

Step 6 of 26

Create new data connection

Press Menu.

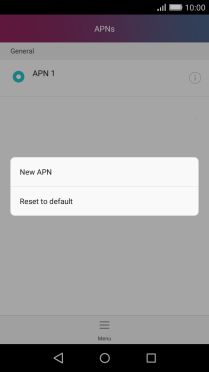

Step 7 of 26

Create new data connection

Press New APN.

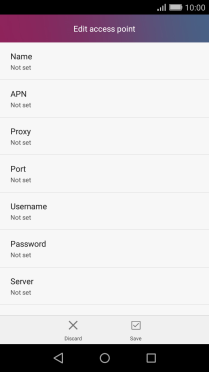

Step 8 of 26

Enter a name for the connection

Press Name.

Vodafone Internet
Step 9 of 26

Enter a name for the connection

Key in Vodafone Internet and press OK.

Step 10 of 26

Enter APN

Press APN.

live.vodafone.com
Step 11 of 26

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 26

Enter IP address

Press Proxy.

10.24.59.100
Step 13 of 26

Enter IP address

Key in 10.24.59.100 and press OK.

Step 14 of 26

Enter port number

Press Port.

80
Step 15 of 26

Enter port number

Key in 80 and press OK.

Step 16 of 26

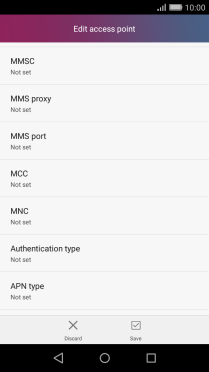

Enter country code

Press MCC.

272
Step 17 of 26

Enter country code

Key in 272 and press OK.

Step 18 of 26

Enter network code

Press MNC.

01

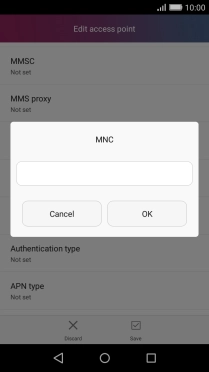

Step 19 of 26

Enter network code

Key in 01 and press OK.

Step 20 of 26

Select authentication type

Press Authentication type.

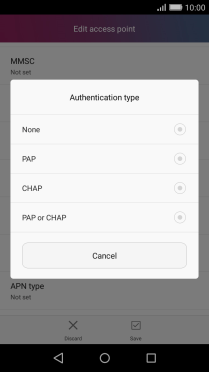

Step 21 of 26

Select authentication type

Press PAP.

Step 22 of 26

Select APN type

Press APN type.

default
Step 23 of 26

Select APN type

Key in default and press OK.

Step 24 of 26

Save data connection

Press Save.

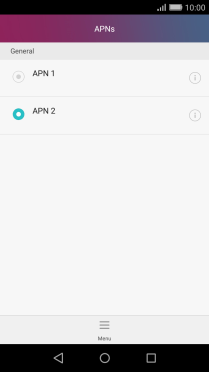

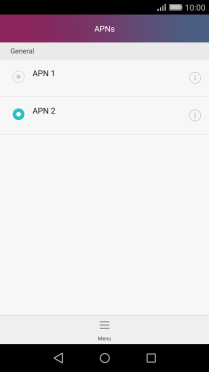

Step 25 of 26

Save data connection

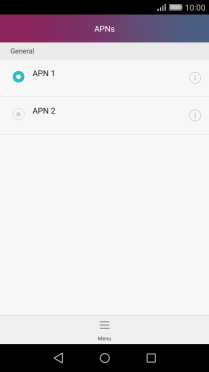

Press the field next to the required data connection to activate it.

Step 26 of 26

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access Point Names"

Press Settings.
Press All.
Press More.
Press Mobile network.
Press Access Point Names.

2 Create new data connection

Press Menu.
Press New APN.

3 Enter a name for the connection

Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

4 Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5 Enter IP address

Press Proxy.
Key in 10.24.59.100 and press OK.
10.24.59.100

6 Enter port number

Press Port.
Key in 80 and press OK.
80

7 Enter country code

Press MCC.
Key in 272 and press OK.
272

8 Enter network code

Press MNC.
Key in 01 and press OK.
01

9 Select authentication type

Press Authentication type.
Press PAP.

10 Select APN type

Press APN type.
Key in default and press OK.
default

11 Save data connection

Press Save.
Press the field next to the required data connection to activate it.

12 Return to the home screen

Press the Home key to return to the home screen.

Did this solve the problem?

Yes - All solved No - Go to next cause
