Set up your phone for internet - HTC One M9

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

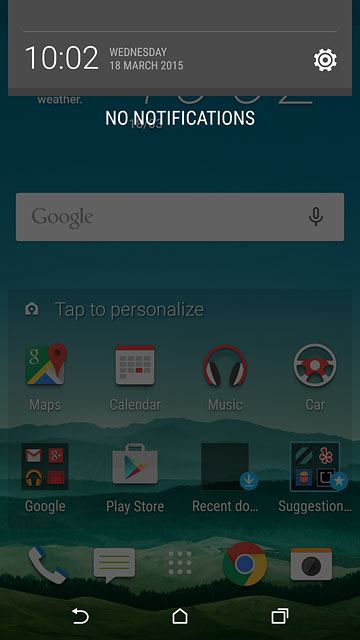

Step 1 of 23

Find "Access point names"

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.

Step 2 of 23

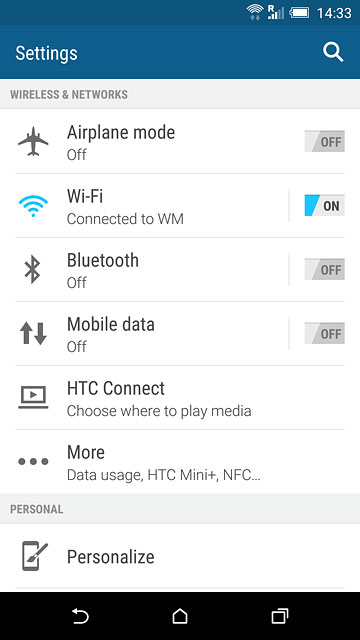

Find "Access point names"

Press Mobile data.

Step 3 of 23

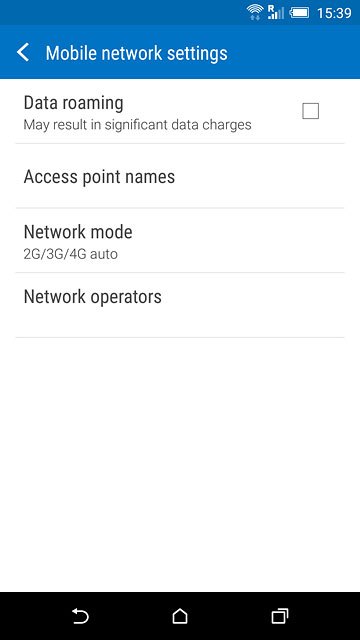

Find "Access point names"

Press Access point names.

Step 4 of 23

Create new data connection

Press the menu icon.

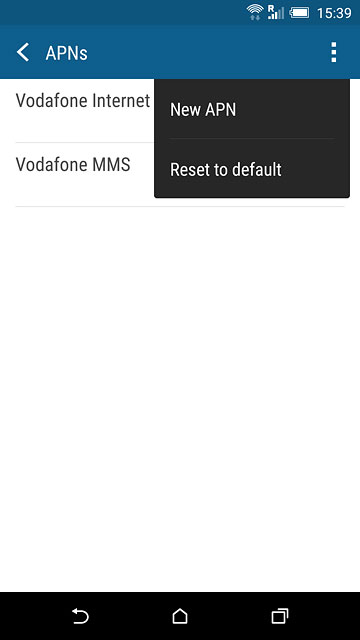

Step 5 of 23

Create new data connection

Press New APN.

Step 6 of 23

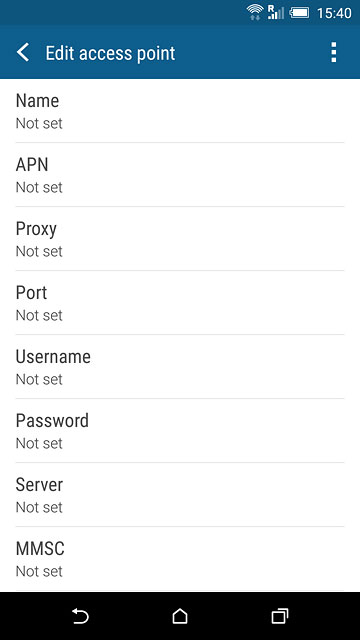

Enter data connection name

Press Name.

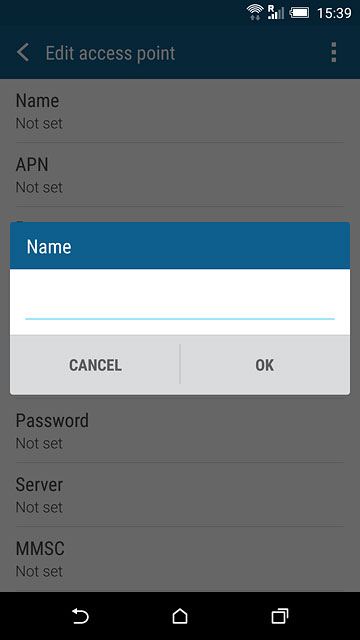

Step 7 of 23

Enter data connection name

Key in Vodafone Internet and press OK.

Step 8 of 23

Enter APN

Press APN.

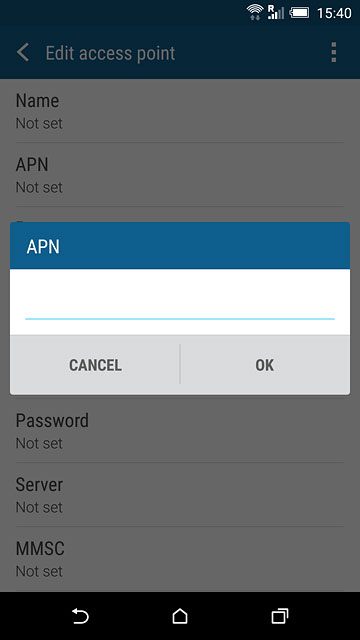

Step 9 of 23

Enter APN

Key in live.vodafone.com and press OK.

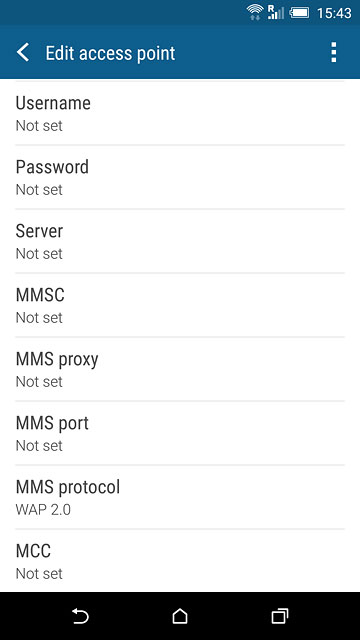

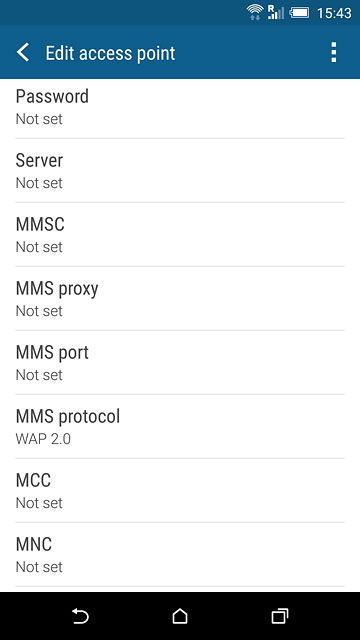

Step 10 of 23

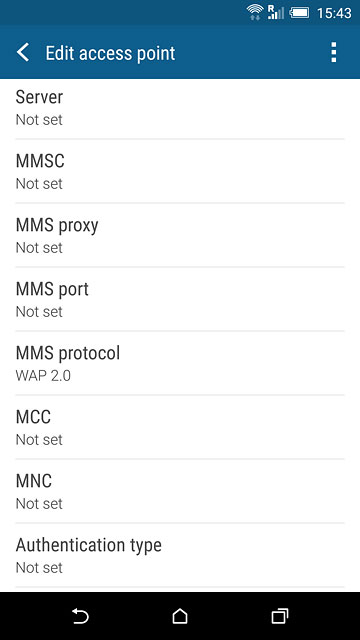

Enter country code

Press MCC.

Step 11 of 23

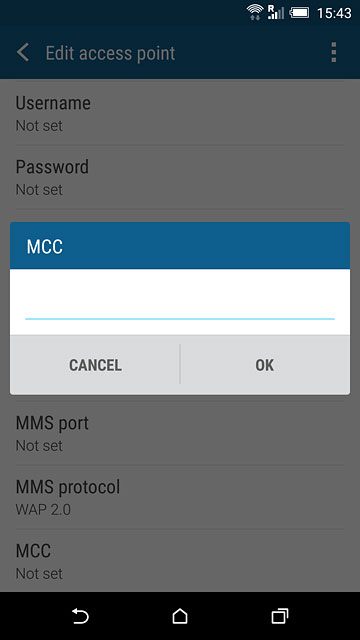

Enter country code

Key in 272 and press OK.

Step 12 of 23

Enter network code

Press MNC.

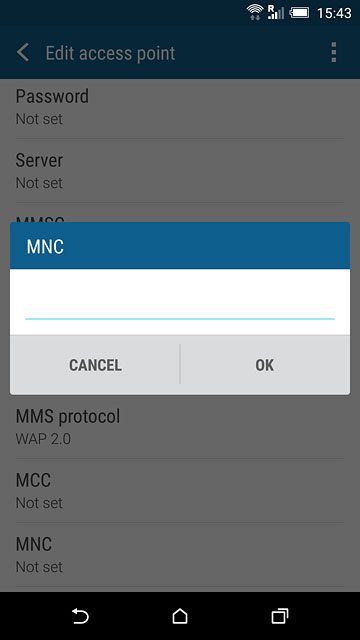

Step 13 of 23

Enter network code

Key in 01 and press OK.

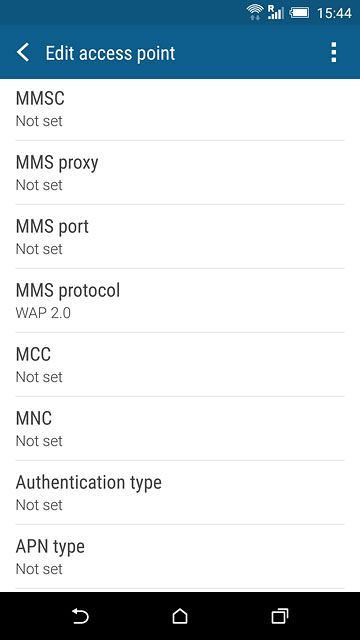

Step 14 of 23

Select authentication type

Press Authentication type.

Step 15 of 23

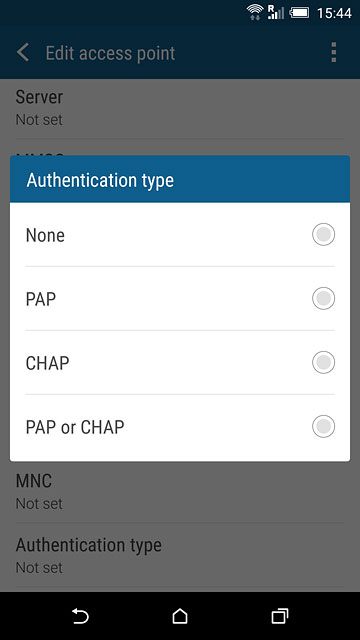

Select authentication type

Press PAP.

Step 16 of 23

Select APN type

Press APN type.

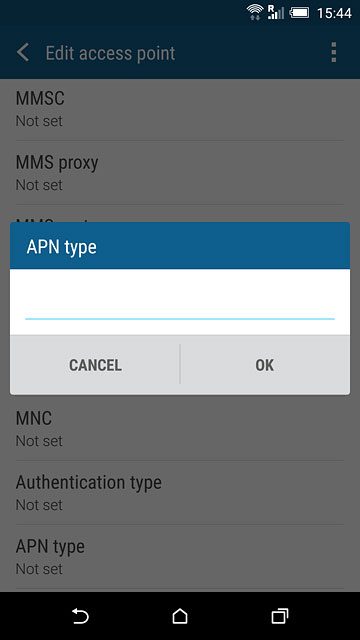

Step 17 of 23

Select APN type

Key in default and press OK.

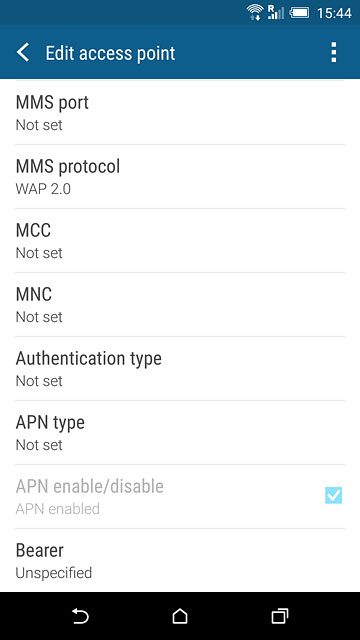

Step 18 of 23

Select data bearer

Press Bearer.

Step 19 of 23

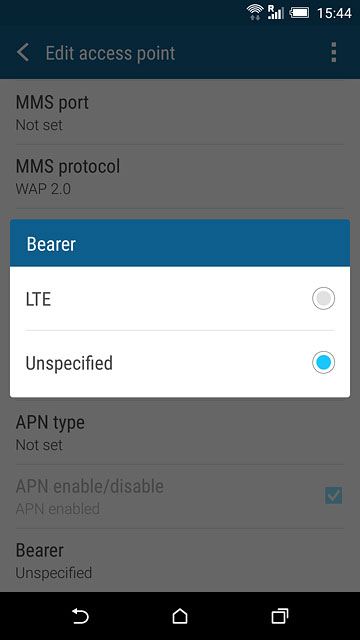

Select data bearer

Press Unspecified.

Step 20 of 23

Save and activate data connection

Press the menu icon.

Step 21 of 23

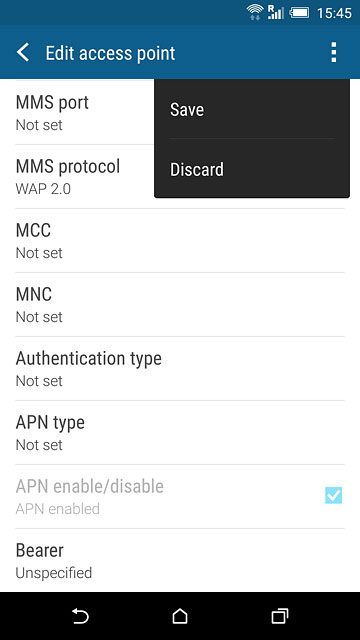

Save and activate data connection

Press Save.

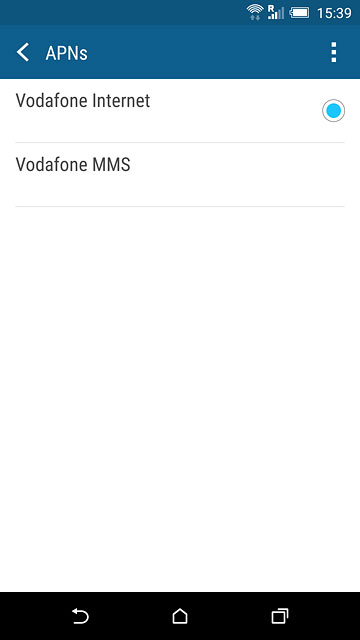

Step 22 of 23

Save and activate data connection

Press the field next to the data connection to fill in the field.

Step 23 of 23

Return to the home screen

Press the home icon to return to the home screen.

Find "Access point names"

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.
Press Mobile data.
Press Access point names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Internet and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Select data bearer

Press Bearer.
Press Unspecified.

Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to fill in the field.

Return to the home screen

Press the home icon to return to the home screen.
