Set up your phone for picture messaging - HTC One M8i

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 28

Find "Access point names"

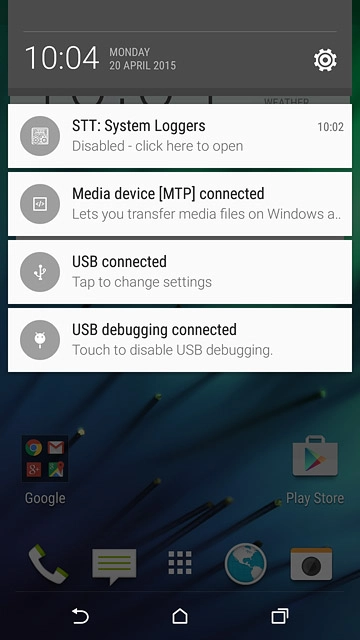

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.

Step 2 of 28

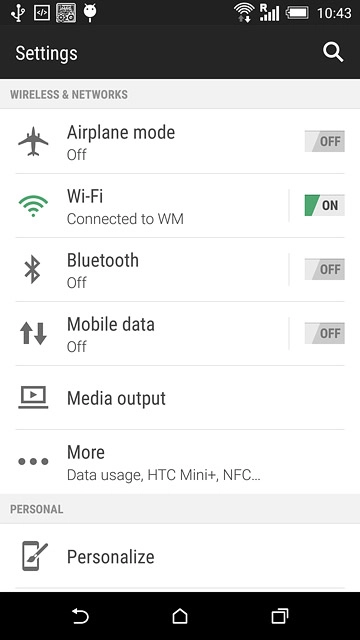

Find "Access point names"

Press Mobile data.

Step 3 of 28

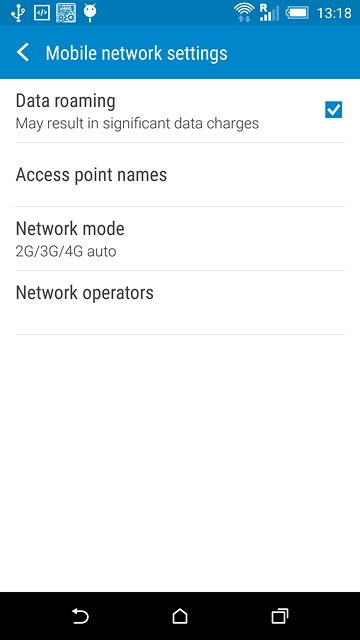

Find "Access point names"

Press Access point names.

Step 4 of 28

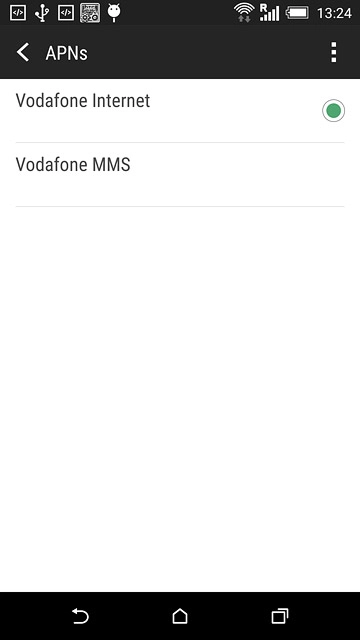

Create new data connection

Press the menu icon.

Step 5 of 28

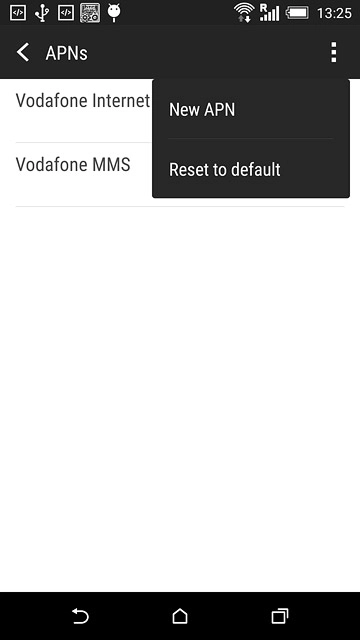

Create new data connection

Press New APN.

Step 6 of 28

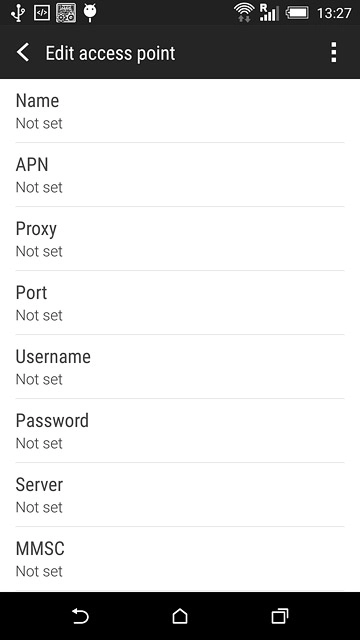

Enter data connection name

Press Name.

Step 7 of 28

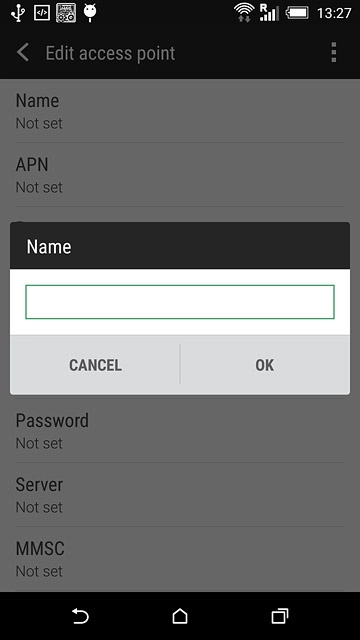

Enter data connection name

Key in Vodafone MMS and press OK.

Step 8 of 28

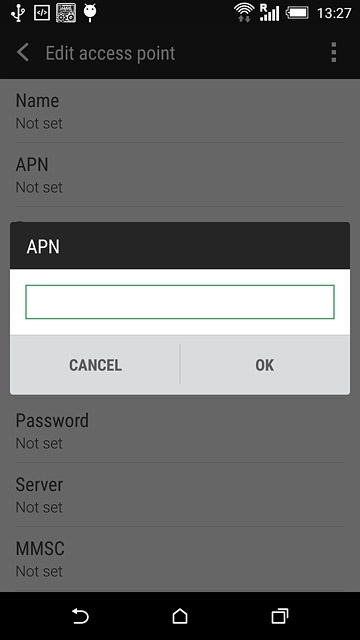

Enter APN

Press APN.
Key in mms.vodafone.net

Step 9 of 28

Enter APN

Press OK.

Step 10 of 28

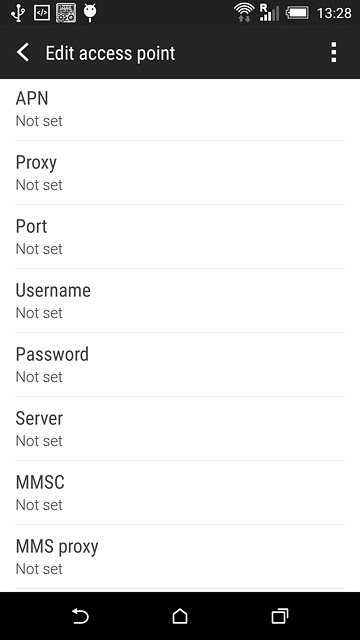

Enter picture messaging server

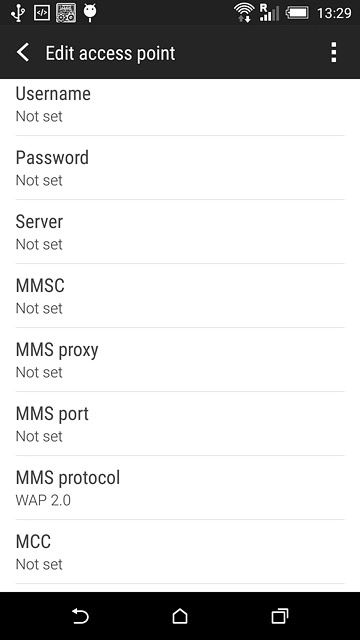

Press MMSC.

Step 11 of 28

Enter picture messaging server

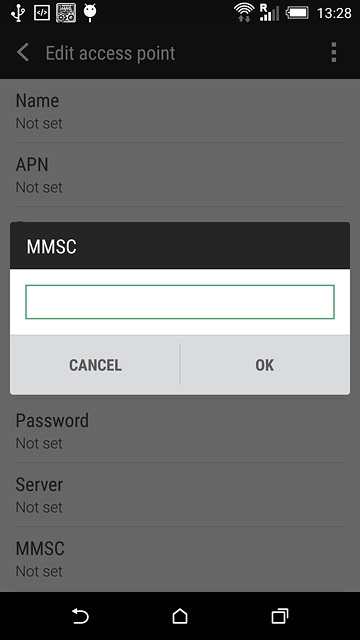

Key in http://www.vodafone.ie/mms and press OK.

Step 12 of 28

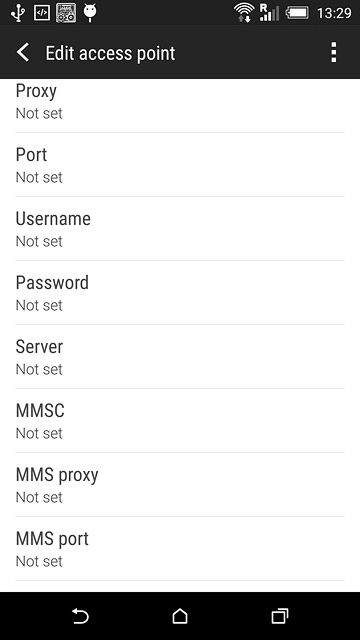

Enter IP address

Press MMS proxy.

Step 13 of 28

Enter IP address

Key in 10.24.59.200 and press OK.

Step 14 of 28

Enter port number

Press MMS port.

Step 15 of 28

Enter port number

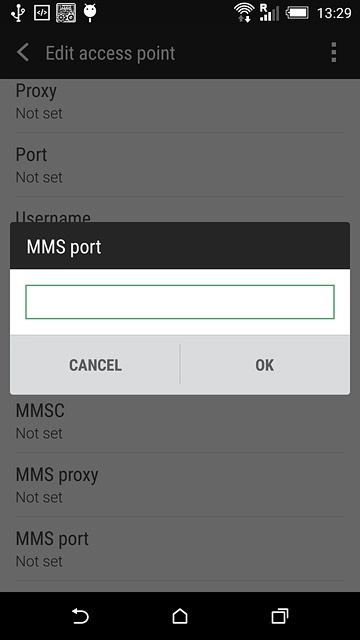

Key in 80 and press OK.

Step 16 of 28

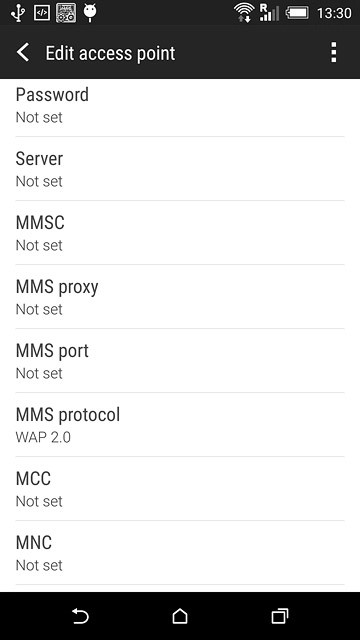

Enter country code

Press MCC.

Step 17 of 28

Enter country code

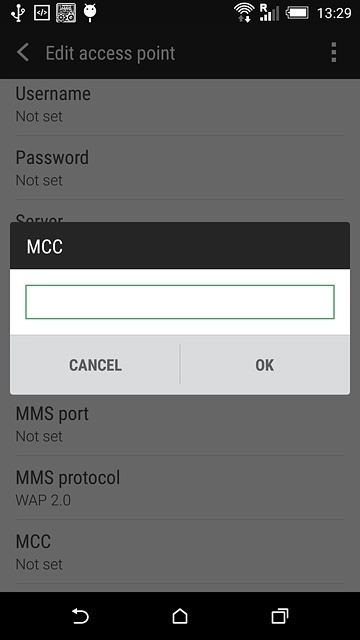

Key in 272 and press OK.

Step 18 of 28

Enter network code

Press MNC.

Step 19 of 28

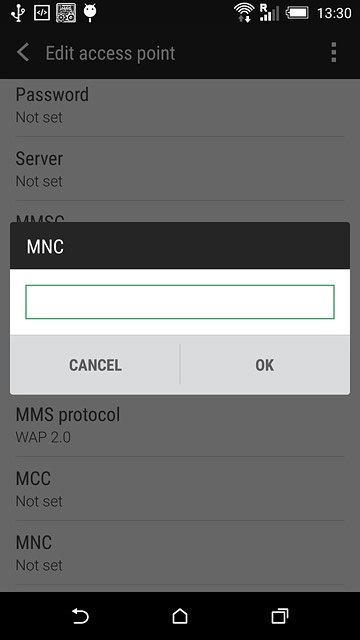

Enter network code

Key in 01 and press OK.

Step 20 of 28

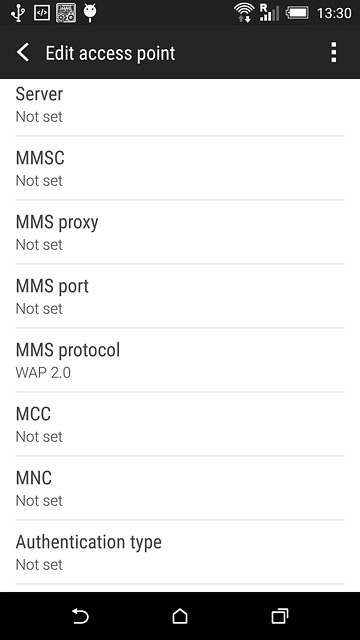

Select authentication type

Press Authentication type.

Step 21 of 28

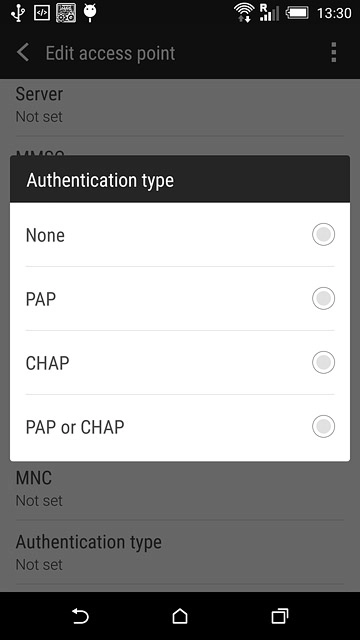

Select authentication type

Press PAP.

Step 22 of 28

Select APN type

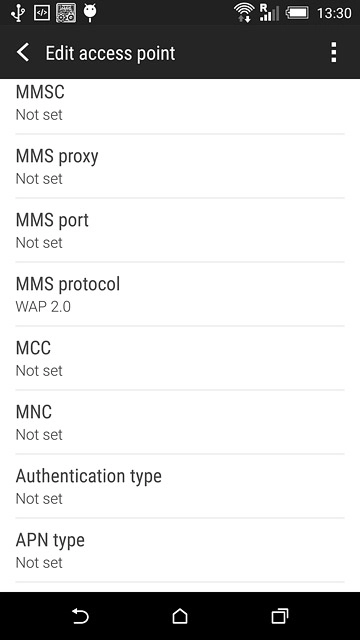

Press APN type.

Step 23 of 28

Select APN type

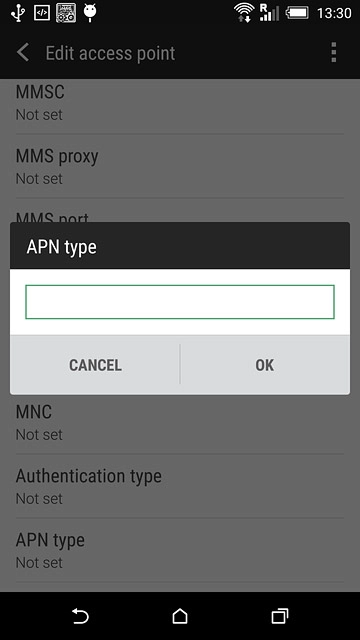

Key in mms and press OK.

Step 24 of 28

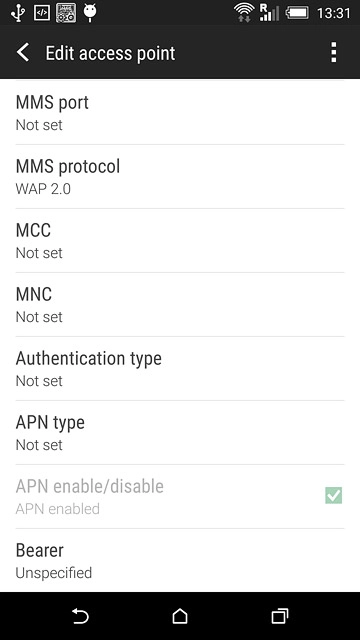

Select data bearer

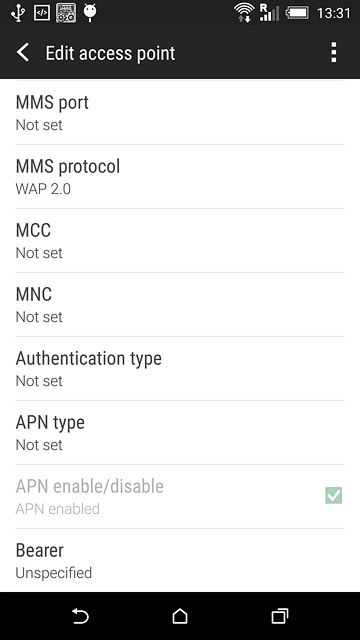

Press Bearer.

Step 25 of 28

Select data bearer

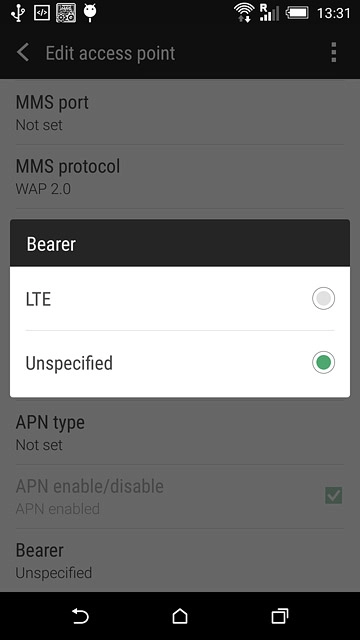

Press Unspecified.

Step 26 of 28

Save data connection

Press the menu icon.

Step 27 of 28

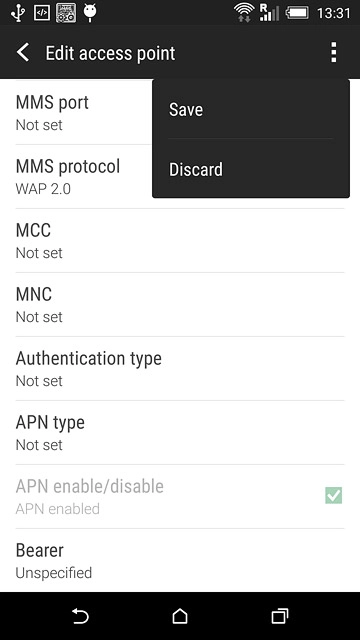

Save data connection

Press Save.

Step 28 of 28

Return to the home screen

Press the home icon to return to the home screen.

Find "Access point names"

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.
Press Mobile data.
Press Access point names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in mms.vodafone.net
Press OK.

Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.

Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.

Enter port number

Press MMS port.
Key in 80 and press OK.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in mms and press OK.

Select data bearer

Press Bearer.
Press Unspecified.

Save data connection

Press the menu icon.
Press Save.

Return to the home screen

Press the home icon to return to the home screen.
