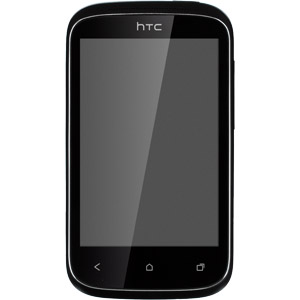

HTC Desire C

HTC Desire C

Set up your phone for Exchange email - HTC Desire C

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 41

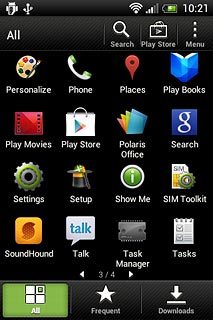

Find "Access Point Names"

Press the menu icon.

Step 2 of 41

Find "Access Point Names"

Press Settings.

Step 3 of 41

Find "Access Point Names"

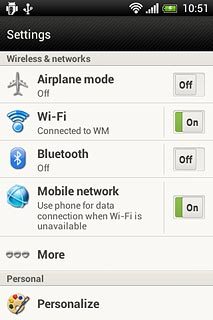

Press Mobile network.

Step 4 of 41

Find "Access Point Names"

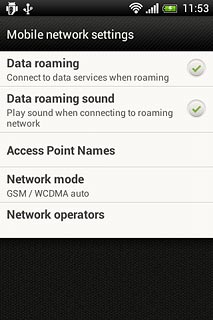

Press Access Point Names.

Step 5 of 41

Create new data connection

Press Menu.

Step 6 of 41

Create new data connection

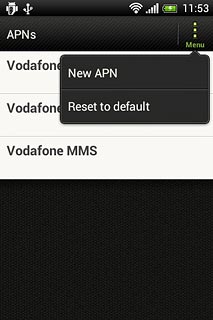

Press New APN.

Step 7 of 41

Enter data connection name

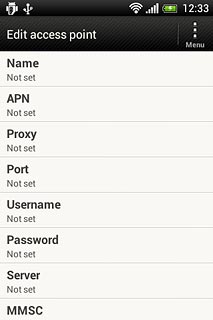

Press Name.

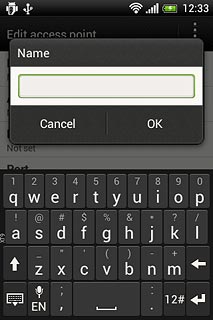

Step 8 of 41

Enter data connection name

Key in Vodafone Mail and press OK.

Step 9 of 41

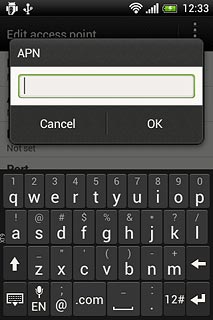

Enter APN

Press APN.

An APN is used to establish a data connection.
Step 10 of 41

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.

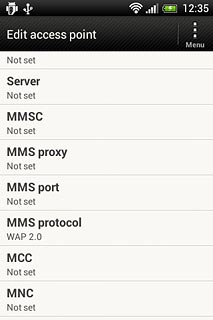

Step 11 of 41

Enter country code

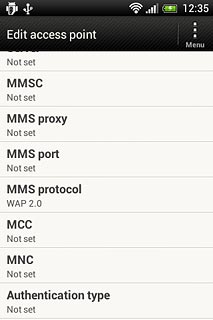

Press MCC.

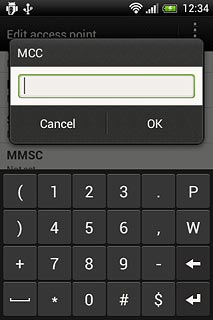

Step 12 of 41

Enter country code

Key in 272 and press OK.

Step 13 of 41

Enter network code

Press MNC.

Step 14 of 41

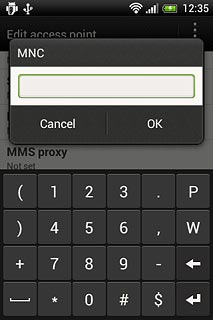

Enter network code

Key in 01 and press OK.

Step 15 of 41

Select authentication type

Press Authentication type.

Step 16 of 41

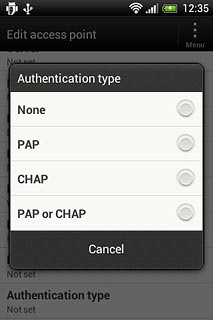

Select authentication type

Press PAP.

Step 17 of 41

Select APN type

Press APN type.

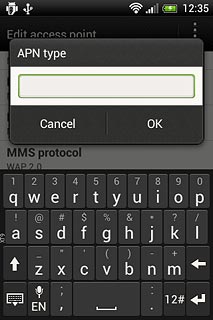

Step 18 of 41

Select APN type

Key in default and press OK.

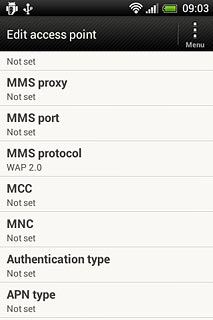

Step 19 of 41

Save and activate data connection

Press Menu.

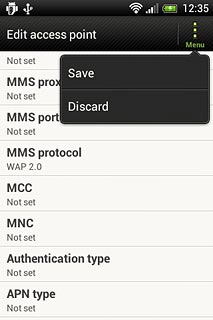

Step 20 of 41

Save and activate data connection

Press Save.

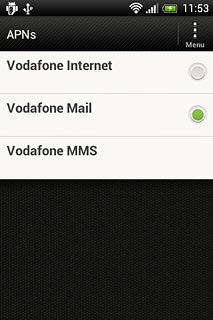

Step 21 of 41

Save and activate data connection

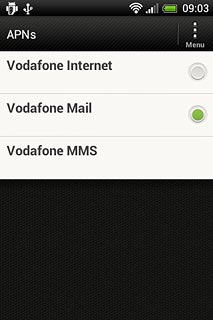

Press the field next to Vodafone Mail to fill in the field.

Step 22 of 41

Save and activate data connection

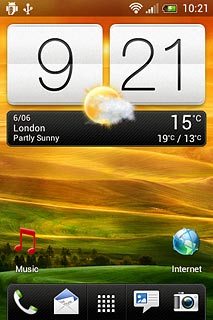

Press the Home key to return to standby mode.

Step 23 of 41

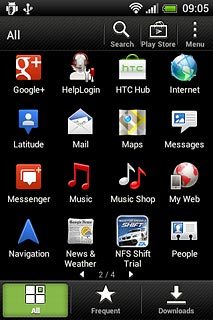

Find "Mail"

Press the menu icon.

Step 24 of 41

Find "Mail"

Press Mail.

Step 25 of 41

Create new email account

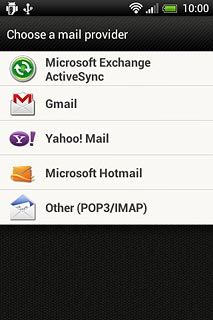

Press Microsoft Exchange ActiveSync.

If email accounts have been created already, press Menu. Press New account.
Step 26 of 41

Enter email address

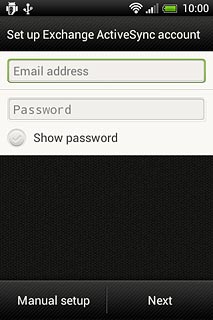

Press Email address and key in your email address.

Step 27 of 41

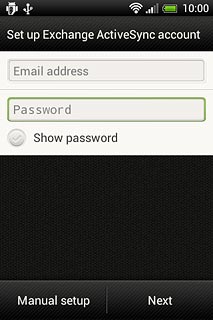

Enter password

Press Password and key in your password.

Step 28 of 41

Enter password

Press Next.

Step 29 of 41

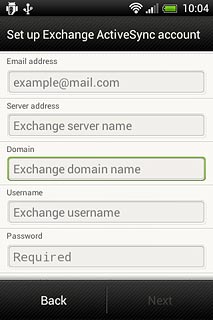

Enter server address

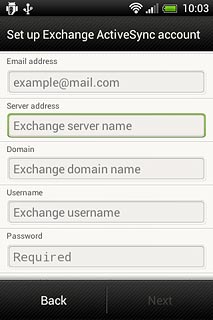

Press the field below Server address and key in the server address.

Step 30 of 41

Enter domain

Press the field below Domain and key in the domain.

Step 31 of 41

Enter username

Press the field below Username and key in your username.

Step 32 of 41

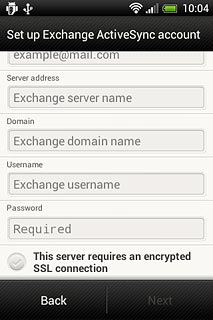

Turn SSL encryption on or off

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 33 of 41

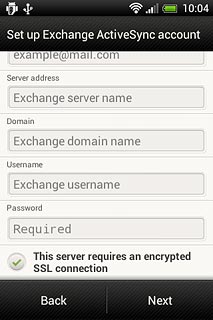

Turn SSL encryption on or off

When the field next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 34 of 41

Turn SSL encryption on or off

Press Next.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 35 of 41

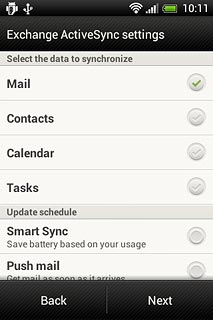

Select data types for synchronisation

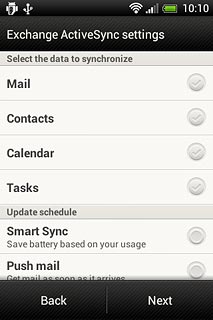

Press Mail, Contacts, Calendar or Tasks to turn synchronisation on or off.

Step 36 of 41

Select data types for synchronisation

When the field next to the menu item is ticked (V), synchronisation is turned on.

Step 37 of 41

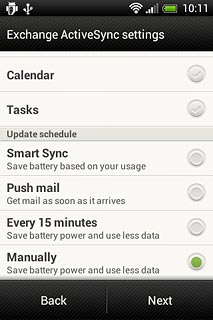

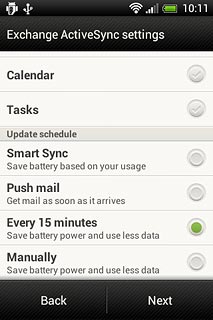

Select settings for retrieval of new email messages

Press Manually or the required setting.

Step 38 of 41

Select settings for retrieval of new email messages

Press Next.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 39 of 41

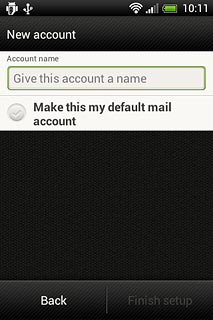

Enter account name

Press the field below Account name and key in the required name.

Step 40 of 41

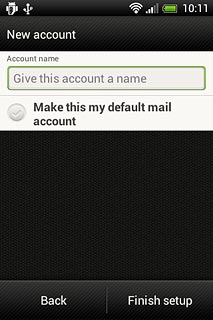

Exit

Press Finish setup.

Step 41 of 41

Exit

Press the Home key to return to standby mode.

1. Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Mobile network.
Press Access Point Names.

2. Create new data connection

Press Menu.
Press New APN.

3. Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

4. Enter APN

Press APN.
An APN is used to establish a data connection.
Key in live.vodafone.com and press OK.
An APN is used to establish a data connection.

5. Enter country code

Press MCC.
Key in 272 and press OK.

6. Enter network code

Press MNC.
Key in 01 and press OK.

7. Select authentication type

Press Authentication type.
Press PAP.

8. Select APN type

Press APN type.
Key in default and press OK.

9. Save and activate data connection

Press Menu.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

10. Find "Mail"

Press the menu icon.
Press Mail.

11. Create new email account

Press Microsoft Exchange ActiveSync.
If email accounts have been created already, press Menu. Press New account.

12. Enter email address

Press Email address and key in your email address.

13. Enter password

Press Password and key in your password.
Press Next.

14. Enter server address

Press the field below Server address and key in the server address.

15. Enter domain

Press the field below Domain and key in the domain.

16. Enter username

Press the field below Username and key in your username.

17. Turn SSL encryption on or off

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
When the field next to the menu item is ticked (V), the function is turned on.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press Next.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

18. Select data types for synchronisation

Press Mail, Contacts, Calendar or Tasks to turn synchronisation on or off.
When the field next to the menu item is ticked (V), synchronisation is turned on.

19. Select settings for retrieval of new email messages

Press Manually or the required setting.
Press Next.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

20. Enter account name

Press the field below Account name and key in the required name.

21. Exit

Press Finish setup.
Press the Home key to return to standby mode.
